tl;dr if you are using go-jose, node-jose, jose2go, Nimbus JOSE+JWT or jose4j with ECDH-ES please update to the latest version. RFC 7516 aka JSON Web Encryption (JWE) hence many software libraries implementing this specification used to suffer from a classic Invalid Curve Attack. This would allow an attacker to completely recover the secret key of a party using JWE with Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES), where the sender could extract receiver’s private key.
Premise
In this blog post I assume you are already knowledgeable about elliptic curves and their use in cryptography. If not Nick Sullivan's A (Relatively Easy To Understand) Primer on Elliptic Curve Cryptography or Andrea Corbellini's series Elliptic Curve Cryptography: finite fields and discrete logarithms are great starting points. Then if you further want to climb the elliptic learning curve including the related attacks you might also want to visit https://safecurves.cr.yp.to/ . Also DJB and Tanja talk at 31c3 comes with an explanation of this very attack (see minute 43) or Juraj Somorovsky et al's research can become handy for learners.
Note that this research was started and inspired by Quan Nguyen from Google and then refined by Antonio Sanso from Adobe.
Note that this research was started and inspired by Quan Nguyen from Google and then refined by Antonio Sanso from Adobe.
Introduction
JSON Web Token (JWT) is a JSON-based open standard (RFC 7519) defined in the OAuth specification family used for creating access tokens. The Javascript Object Signing and Encryption (JOSE) IETF expert group was then formed to formalize a set of signing and encryption methods for JWT that led to the release of RFC 7515 aka JSON Web Signature (JWS) and RFC 7516 aka JSON Web Encryption (JWE). In this post we are going to focus on JWE.
A typical JWE is dot separated string that contains five parts:
eyJhbGciOiJSU0EtT0FFUCIsImVuYyI6IkEyNTZHQ00ifQ.
OKOawDo13gRp2ojaHV7LFpZcgV7T6DVZKTyKOMTYUmKoTCVJRgckCL9kiMT03JGe
ipsEdY3mx_etLbbWSrFr05kLzcSr4qKAq7YN7e9jwQRb23nfa6c9d-StnImGyFDb
Sv04uVuxIp5Zms1gNxKKK2Da14B8S4rzVRltdYwam_lDp5XnZAYpQdb76FdIKLaV
mqgfwX7XWRxv2322i-vDxRfqNzo_tETKzpVLzfiwQyeyPGLBIO56YJ7eObdv0je8
1860ppamavo35UgoRdbYaBcoh9QcfylQr66oc6vFWXRcZ_ZT2LawVCWTIy3brGPi
6UklfCpIMfIjf7iGdXKHzg.
48V1_ALb6US04U3b.
5eym8TW_c8SuK0ltJ3rpYIzOeDQz7TALvtu6UG9oMo4vpzs9tX_EFShS8iB7j6ji
SdiwkIr3ajwQzaBtQD_A.
XFBoMYUZodetZdvTiFvSkQ
This JWE employs RSA-OAEP for key encryption and A256GCM for content encryption :
This is only one of the many possibilities JWE provides. A separate specification called RFC 7518 aka JSON Web Algorithms (JWA) lists all the possible available algorithms that can be used. The one we are discussing today is the Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES). This algorithm allows deriving an ephemeral shared secret (this blog post from Neil Madden shows a concrete example on how to do ephemeral key agreement).
In this case the JWE Protected Header lists as well the used elliptic curve used for the key agreement:
Once the shared secret is calculated the key agreement result can be used in one of two ways:
This is out of scope for this post but as for the other algorithms the JOSE Cookbook contains example of usage for ECDH-ES in combination with AES-GCM or AES-CBC plus HMAC.
As highlighted by Quan during is talk at RWC 2017 :
An elliptic curve is the set of solutions defined by an equation of the form
Equations of this type are called Weierstrass equations. An elliptic curve would look like:
In order to apply the theory of elliptic curves to cryptography we need to look at elliptic curves whose points have coordinates in a finite field Fq. The same curve will then look like below over Finite Field of size 191:
For JWE the elliptic curves in scope are the one defined in Suite B and (only recently) DJB's curve.
Between those, the curve that so far has reached the higher amount of usage is the famous P-256 (defined in Suite B).
Time to open Sage. Let's define P-256:
The order of the curve is a really huge number hence there isn't much an attacker can do with this curve (if the software implements ECDH correctly) in order to guess the private key used in the agreement. This brings us to the next section:
The attack described here is really the classical Invalid Curve Attack. The attack is as simple as powerful and takes advantage from the mere fact that Weierstrass's formula for scalar multiplication does not take in consideration the coefficient b of the curve equation:
The original's P-256 equation is
As we mention above the order of this curve is really big. So we need now to find a more convenient curve for the attacker. Easy peasy with Sage:
As you can see from the image above we just found a nicer curve (from the attacker point of view) that has an order with many small factors. Then we found a point P on the curve that has a really small order (2447 in this example).
Now we can build malicious JWEs (see the Demo Time section below) and extract the value of the secret key modulo 2447 with complexity O(2447).
A crucial part for the attack to succeed is to have the victim to repeat his own contribution to the resulting shared key. In other words this means that the victim should have his private key to be the same for each key agreement. Conveniently enough this is how the Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES) works. Indeed ES stands for Ephemeral-Static were Static is the contribution of the victim!
At this stage we can repeat these operations (find a new curve, craft malicious JWEs, recover the secret key modulo the small order) many many times and collecting information about the secret key modulo many many small orders.
In order to show how the attack would work in practice I set up a live demo in Heroku. In https://obscure-everglades-31759.herokuapp.com/ is up and running one Node.js server app that will act as a victim in this case. The assumption is this: in order to communicate with this web application you need to encrypt a token using the Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES). The static public key from the server needed for the key agreement is in https://obscure-everglades-31759.herokuapp.com/ecdh-es-public.json:
An application that want to POST data to this server needs first to do a key agreement using the server's public key above and then encrypt the payload using the derived shared key using the JWE format. Once the JWE is in place this can be posted to https://obscure-everglades-31759.herokuapp.com/secret . The web app will respond with a response status 200 if all went well (namely if it can decrypt the payload content) and with a response status 400 if for some reason the received token is missing or invalid. This will act as an oracle for any potential attacker in the way shown in the previous The Attack section.
I set up an attacker application in https://afternoon-fortress-81941.herokuapp.com/ .
You can visit it and click the 'Recover Key' button and observe how the attacker is able to recover the secret key from the server piece by piece. Note that this is only a demo application so the recovered secret key is really small in order to reduce the waiting time. In practice the secret key will be significantly larger (hence it will take a bit more to recover the key).
In case you experience problem with the live demo, or simply if want to see the code under the hood, you can find the demo code in Github:
The author would like to thanks the maintainers of go-jose, node-jose, jose2go, Nimbus JOSE+JWT and jose4j for the responsiveness on fixing the issue. Francesco Mari for helping out with the development of the demo application. Tommaso Teofili and Simone Tripodi for troubleshooting. Finally as mentioned above I would like to thank Quan Nguyen from Google, indeed this research could not be possible without his initial incipit.
A typical JWE is dot separated string that contains five parts:
- The JWE Protected Header
- The JWE Encrypted Key
- The JWE Initialization Vector
- The JWE Ciphertext
- The JWE Authentication Tag
eyJhbGciOiJSU0EtT0FFUCIsImVuYyI6IkEyNTZHQ00ifQ.
OKOawDo13gRp2ojaHV7LFpZcgV7T6DVZKTyKOMTYUmKoTCVJRgckCL9kiMT03JGe
ipsEdY3mx_etLbbWSrFr05kLzcSr4qKAq7YN7e9jwQRb23nfa6c9d-StnImGyFDb
Sv04uVuxIp5Zms1gNxKKK2Da14B8S4rzVRltdYwam_lDp5XnZAYpQdb76FdIKLaV
mqgfwX7XWRxv2322i-vDxRfqNzo_tETKzpVLzfiwQyeyPGLBIO56YJ7eObdv0je8
1860ppamavo35UgoRdbYaBcoh9QcfylQr66oc6vFWXRcZ_ZT2LawVCWTIy3brGPi
6UklfCpIMfIjf7iGdXKHzg.
48V1_ALb6US04U3b.
5eym8TW_c8SuK0ltJ3rpYIzOeDQz7TALvtu6UG9oMo4vpzs9tX_EFShS8iB7j6ji
SdiwkIr3ajwQzaBtQD_A.
XFBoMYUZodetZdvTiFvSkQ
This JWE employs RSA-OAEP for key encryption and A256GCM for content encryption :

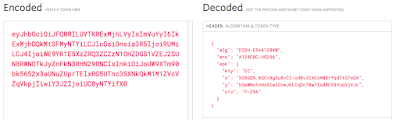

In this case the JWE Protected Header lists as well the used elliptic curve used for the key agreement:
Once the shared secret is calculated the key agreement result can be used in one of two ways:
1. directly as the Content Encryption Key (CEK) for the "enc" algorithm, in the Direct Key Agreement mode, or
2. as a symmetric key used to wrap the CEK with the A128KW, A192KW, or A256KW algorithms, in the Key Agreement with Key Wrapping mode.
This is out of scope for this post but as for the other algorithms the JOSE Cookbook contains example of usage for ECDH-ES in combination with AES-GCM or AES-CBC plus HMAC.
Observation
As highlighted by Quan during is talk at RWC 2017 :
Decryption/Signature verification’ input is always under attacker’s control
As we will see thorough this post this simple observation will be enough to fully recover the receiver’s private key. But first we need to dig a bit into elliptic curve bits and pieces.
Elliptic Curves
An elliptic curve is the set of solutions defined by an equation of the form
y^2 = x^3 + ax + b

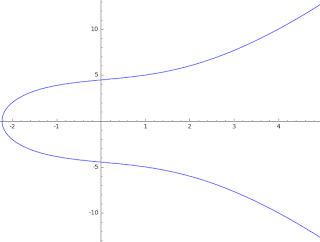

Equations of this type are called Weierstrass equations. An elliptic curve would look like:
 |
| y^2 = x^3 + 4x + 20 |
In order to apply the theory of elliptic curves to cryptography we need to look at elliptic curves whose points have coordinates in a finite field Fq. The same curve will then look like below over Finite Field of size 191:
 |
| y^2 = x^3 + 4x + 20 over Finite Field of size 191 |
For JWE the elliptic curves in scope are the one defined in Suite B and (only recently) DJB's curve.
Between those, the curve that so far has reached the higher amount of usage is the famous P-256 (defined in Suite B).
Time to open Sage. Let's define P-256:
The order of the curve is a really huge number hence there isn't much an attacker can do with this curve (if the software implements ECDH correctly) in order to guess the private key used in the agreement. This brings us to the next section:
The Attack
The attack described here is really the classical Invalid Curve Attack. The attack is as simple as powerful and takes advantage from the mere fact that Weierstrass's formula for scalar multiplication does not take in consideration the coefficient b of the curve equation:
y^2 = ax^3 + ax + b
The original's P-256 equation is
As we mention above the order of this curve is really big. So we need now to find a more convenient curve for the attacker. Easy peasy with Sage:
As you can see from the image above we just found a nicer curve (from the attacker point of view) that has an order with many small factors. Then we found a point P on the curve that has a really small order (2447 in this example).
Now we can build malicious JWEs (see the Demo Time section below) and extract the value of the secret key modulo 2447 with complexity O(2447).
A crucial part for the attack to succeed is to have the victim to repeat his own contribution to the resulting shared key. In other words this means that the victim should have his private key to be the same for each key agreement. Conveniently enough this is how the Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES) works. Indeed ES stands for Ephemeral-Static were Static is the contribution of the victim!
At this stage we can repeat these operations (find a new curve, craft malicious JWEs, recover the secret key modulo the small order) many many times and collecting information about the secret key modulo many many small orders.
And finally Chinese Remainder Theorem for the win!
At the end of the day the issue here is that the specification and consequently all the libraries I checked missed to validate that the received public key (contained in the JWE Protected Header) is on the curve. You can see the Vulnerable Libraries section below to check how the various libraries fixed the issue.
Again you can find details of the attack in the original paper.At the end of the day the issue here is that the specification and consequently all the libraries I checked missed to validate that the received public key (contained in the JWE Protected Header) is on the curve. You can see the Vulnerable Libraries section below to check how the various libraries fixed the issue.
Demo Time
INSTANT DEMO CLICK HERE
Explanation
In order to show how the attack would work in practice I set up a live demo in Heroku. In https://obscure-everglades-31759.herokuapp.com/ is up and running one Node.js server app that will act as a victim in this case. The assumption is this: in order to communicate with this web application you need to encrypt a token using the Key Agreement with Elliptic Curve Diffie-Hellman Ephemeral Static (ECDH-ES). The static public key from the server needed for the key agreement is in https://obscure-everglades-31759.herokuapp.com/ecdh-es-public.json:

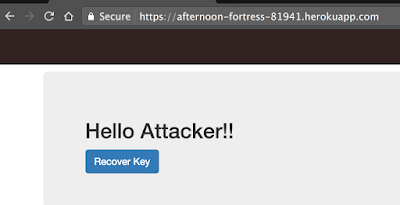

I set up an attacker application in https://afternoon-fortress-81941.herokuapp.com/ .
You can visit it and click the 'Recover Key' button and observe how the attacker is able to recover the secret key from the server piece by piece. Note that this is only a demo application so the recovered secret key is really small in order to reduce the waiting time. In practice the secret key will be significantly larger (hence it will take a bit more to recover the key).
In case you experience problem with the live demo, or simply if want to see the code under the hood, you can find the demo code in Github:
- https://github.com/asanso/jwe-receiver contains the code of the vulnerable server.
- https://github.com/asanso/jwe-sender contains the code of the attacker.
Vulnerable Libraries
Here you can find a list of libraries that were vulnerable to this particular attack so far:
* Latest version of Node.js is immune to this attack. It was still possible to be vulnerable when using browsers without web crypto support.
** Affected was the default Java SUN JCA provider that comes with Java prior to version 1.8.0_51. Later Java versions and the BouncyCastle JCA provider are not affected.
- node-jose v0.9.3 include the fixes necessary, which was published few weeks ago. Here the Gist of the original proof of concept.*
- jose2go's fix landed in version 1.3.
- Nimbus JOSE+JWT pushed out a fixed artifact to Maven central as v4.34.2 . Here the Gist of the original proof of concept.**
- jose4j now comes with a fix for this problem since v0.5.5 . Here the Gist of the original proof of concept.**
- go-jose (this is the original library found vulnerable by Quan Nguyen)
* Latest version of Node.js is immune to this attack. It was still possible to be vulnerable when using browsers without web crypto support.
** Affected was the default Java SUN JCA provider that comes with Java prior to version 1.8.0_51. Later Java versions and the BouncyCastle JCA provider are not affected.
Improving the JWE standard
I reported this issue to the JOSE working group via a mail to the appropriate mailing list. We all seem to agree that an errata where the problem is listed is at least welcomed.This post is a direct attempt to raise awareness about this specific problem.
Acknowledgement
The author would like to thanks the maintainers of go-jose, node-jose, jose2go, Nimbus JOSE+JWT and jose4j for the responsiveness on fixing the issue. Francesco Mari for helping out with the development of the demo application. Tommaso Teofili and Simone Tripodi for troubleshooting. Finally as mentioned above I would like to thank Quan Nguyen from Google, indeed this research could not be possible without his initial incipit.
That's all folks. For more crypto goodies, follow me on Twitter.
